Product Features :

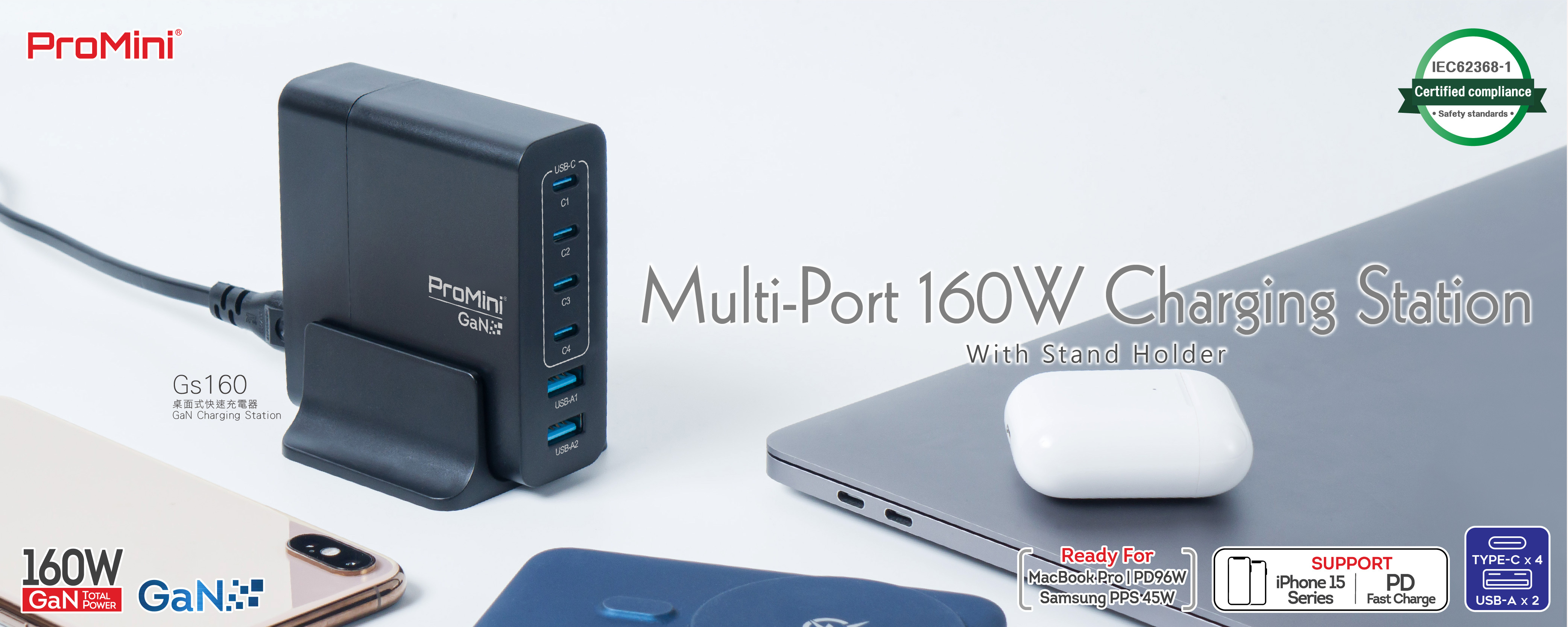

- PD3.0 GaN 160W Charging Station.
- Supports Power Delivery 3.0 / PPS / QC4+ / SFC / QC3.0 fast charge.

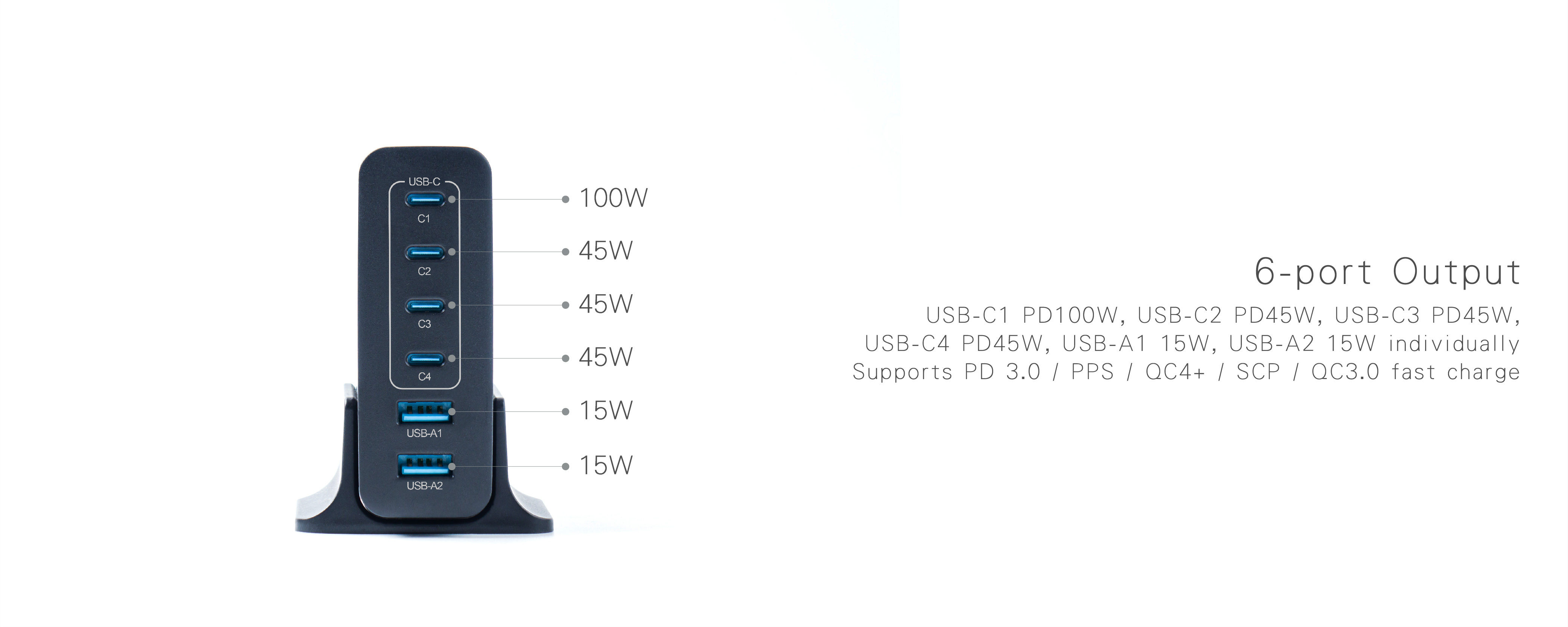

- 6-port output - USB-C1 PD100W, USB-C2 PD45W, USB-C3 PD45W, USB-C4 PD45W, USB-A1 15W, USB-A2 15W individually.
- Charge up a MacBook Pro 16” / Notebook, provides PD100W (Max.) fast charge.

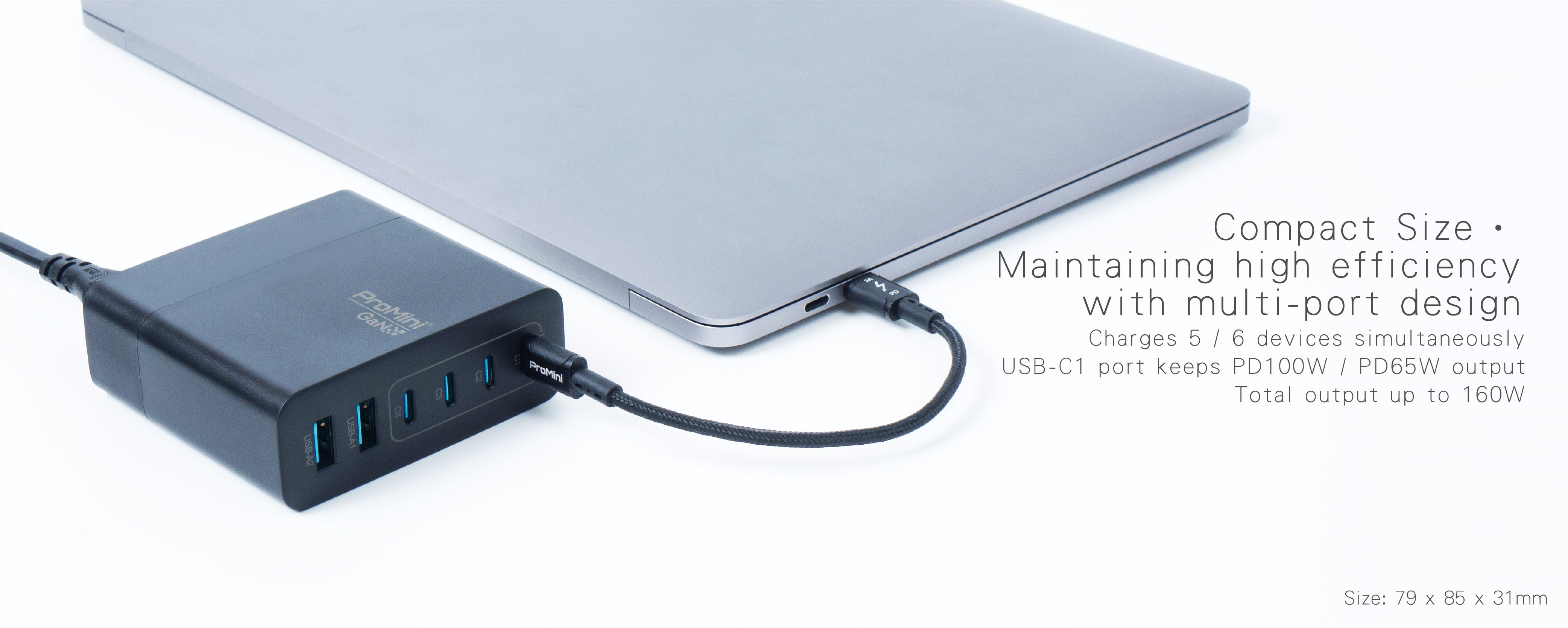

- Charges 5 / 6 devices simultaneously, USB-C1 port keeps PD100W / PD65W output
- Total output up to 160W

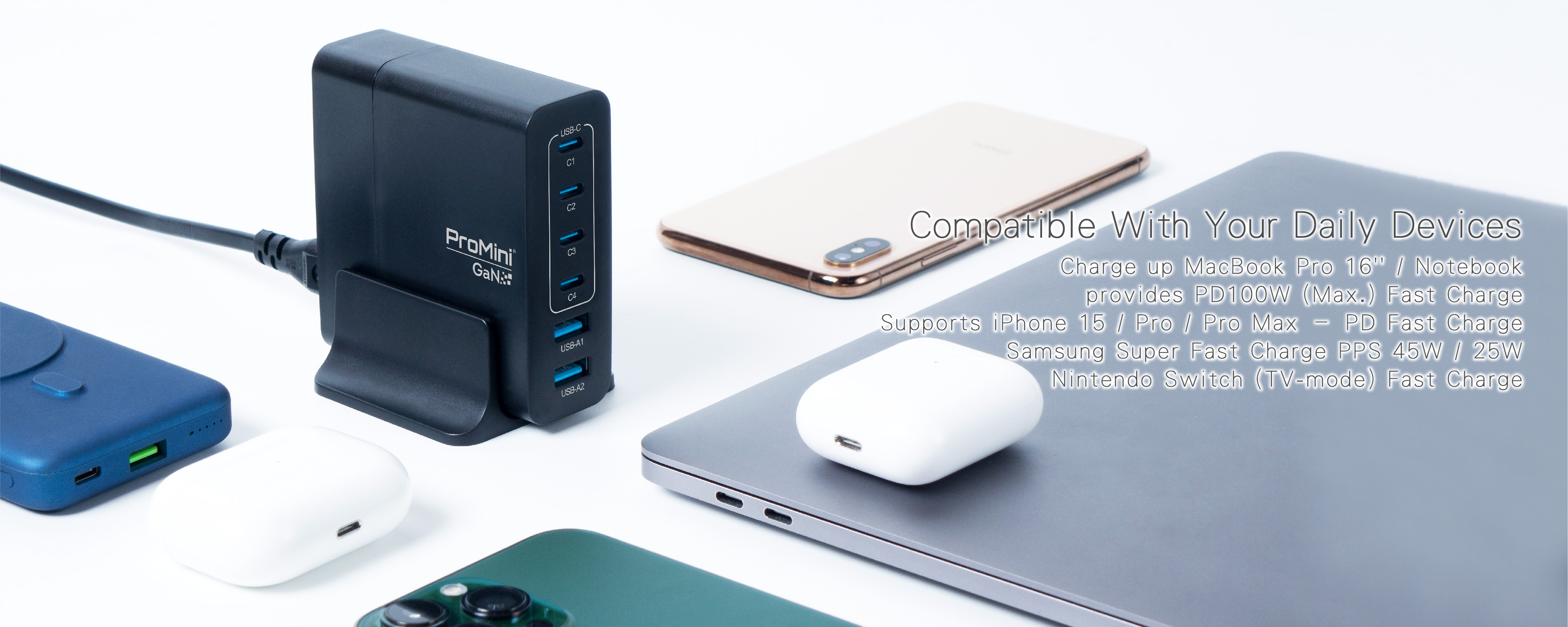

- Compatible with the new USB-C PD devices such as the Apple Macbook Pro 16"/15" and otherdevices powered by USB-C connector.
- Supports iPhone 15/Pro/Pro Max – PD fast charge, Samsung Super Fast Charge 45W/25W,fast charging for Galaxy S22 Ultra, Nintendo Switch (TV-mode) etc.
- Device connection Auto-Detect, power On/Off automatically.
- Multiple safety protection, prevent Over-Current, Over-Voltage, Over-Temperature and Short Circuit.
- Worldwide use with AC input 100V-240V.
- Certified compliance with applicable safety standard.
- Covered by Global products liability insurance.
- UK plug power cord with BS1363 certificate, compliance with Hong Kong safety standard.
- Certified compliance with IEC62368-1, complies with international safety standards.
- Product is covered by Global products liability insurance within one-year warranty period.
Specification :
Input: AC100V-240V~ 50/60Hz 2.5A max.

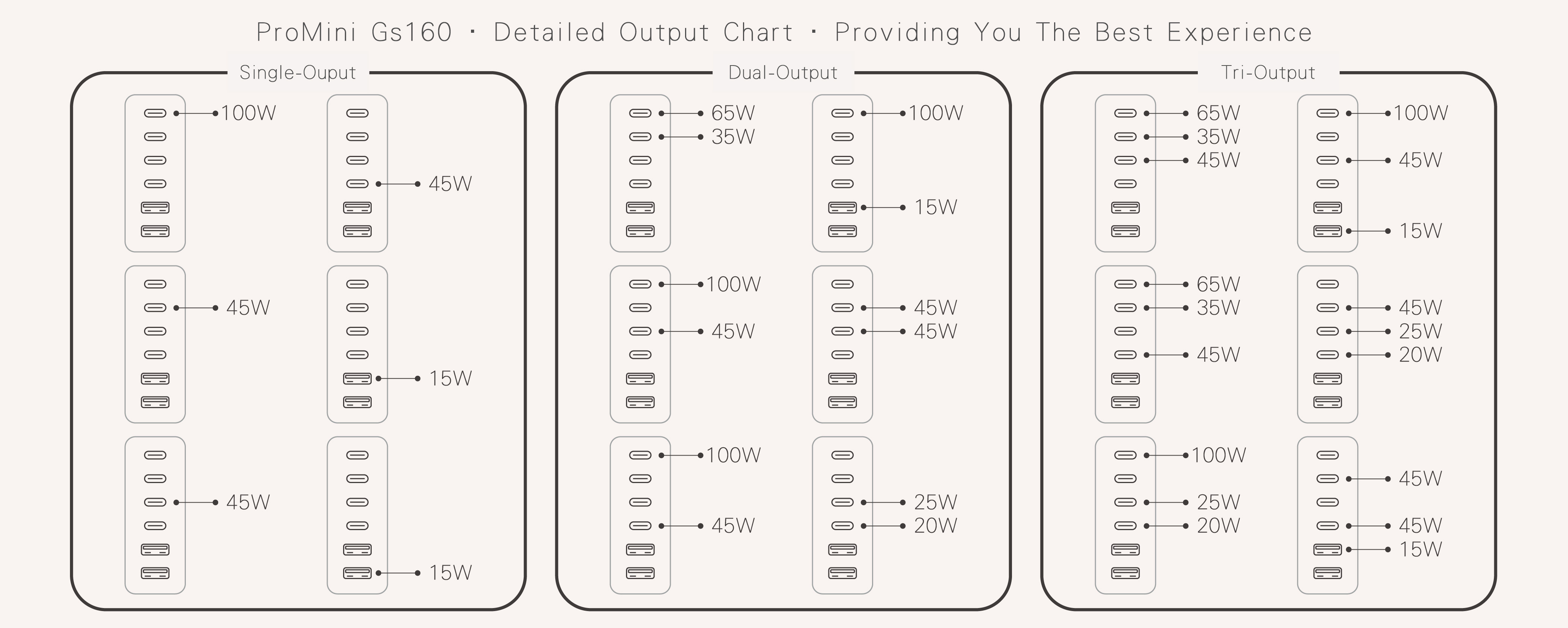

Single-Output
USB-C1: DC5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A 100W max.
PPS: DC3.3V-21V⎓5A
USB-C2: DC5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A 45W max.
PPS: DC3.3V-16V⎓3A
USB-C3: DC5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A 45W max.
PPS: DC3.3V-11V⎓4.1A, 3.3V-21V⎓2.25A
USB-C4: DC5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A 45W max.
PPS: DC3.3V-5.9V⎓3A, 3.3V-11V⎓2.3A
USB-A1: DC5V⎓3A 15W max.
USB-A2: DC5V⎓3A 15W max.
Dual-Output
USB-C1+C2 65W+35W 100W max.
USB-C1+C3/C4 100W+45W 145W max.
USB-C1+A1/A2 100W+15W 115W max.
USB-C2+C3/C4 45W+45W 90W max.
USB-C2/C3/C4+A1/A2 45W+15W 60W max.
USB-C3+C4 25W+20W 45W max.
USB-A1+A2 7.5W+7.5W 15W max.
3-Output
USB-C1+C2+C3/C4 65W+35W+45W 145W max.
USB-C1+C2+A1/A2 65W+35W+15W 105W max.
USB-C1+C3+C4 100W+25W+20W 145W max.
USB-C1+C3/C4+A1/A2 100W+45W+15W 160W max.
USB-C1+A1+A2 100W+7.5W+7.5W 115W max.
USB-C2+C3+C4 45W+25W+20W 90W max.
USB-C2+C3/C4+A1/A2 45W+45W+15W 105W max.
USB-C2/C3/C4+A1+A2 45W+7.5W+7.5W 60W max.
USB-C3+C4+A1/A2 25W+20W+15W 60W max.

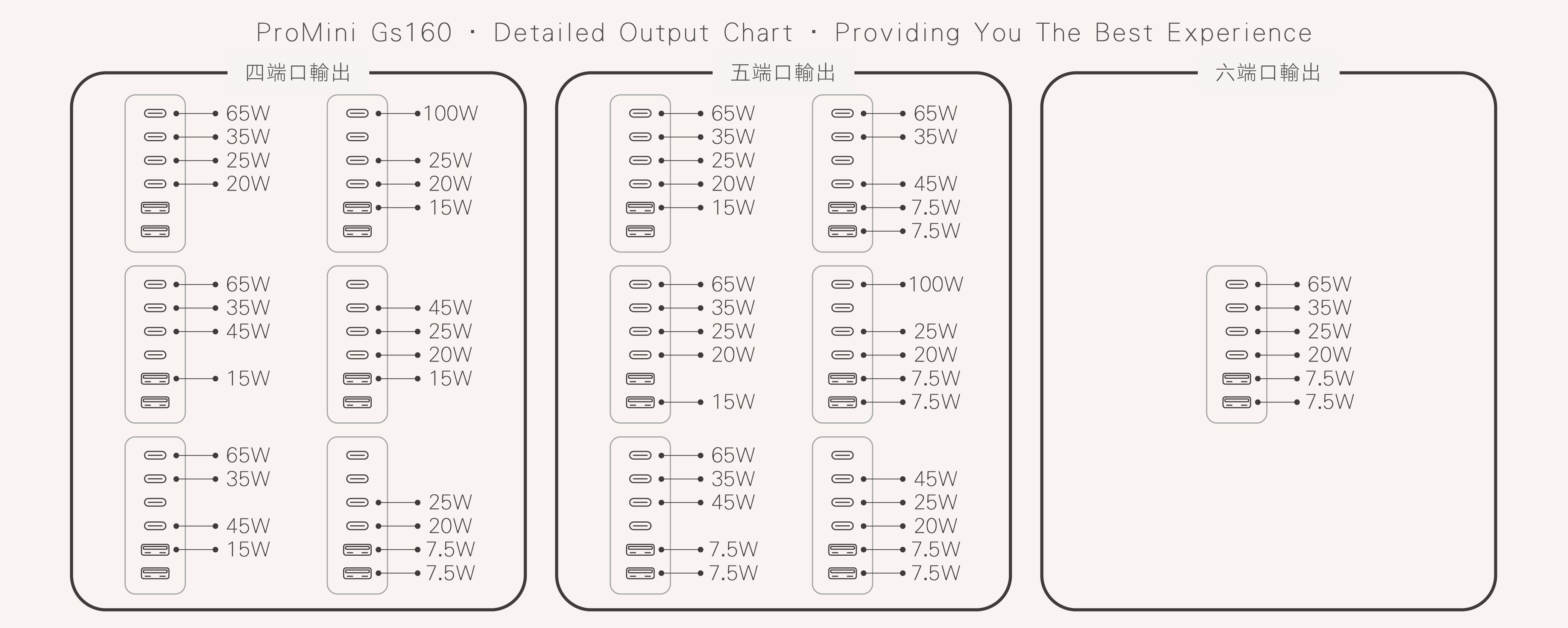

4-Output
USB-C1+C2+C3+C4 65W+35W+25W+20W 145W max.
USB-C1+C2+C3/C4+A1/A2 65W+35W+45W+15W 160W max.
USB-C1+C3+C4+A1/A2 100W+25W+20W+15W 160W max.
USB-C2+C3+C4+A1/A2 45W+25W+20W+15W 105W max.
USB-C2+C3/C4+A1+A2 45W+45W+7.5W+7.5W 105W max.
USB-C3+C4+A1+A2 25W+20W+7.5W+7.5W 60W max.
5-Output
USB-C1+C2+C3+C4+A1/A2 65W+35W+25W+20W+15W 160W max.
USB-C1+C2+C3/C4+A1+A2 65W+35W+45W+7.5W+7.5W 160W max.
USB-C1+C3+C4+A1+A2 100W+25W+20W+7.5W+7.5W 160W max.
USB-C2+C3+C4+A1+A2 45W+25W+20W+7.5W+7.5W 105W max.
6-Output
USB-C1+C2+C3+C4+A1+A2 65W+35W+25W+20W+7.5W+7.5W 160W max.
Total Output: 160W
Dimension 79 x 85 x 31mm
Weight 304g
Package contains
- ProMini Gs160
- Stand Holder
- AC power cord (1.5m)
- User’s Manual
Full Packing
Weight : 535g
Dimension: 125 x 107 x 83mm
