Product Features :

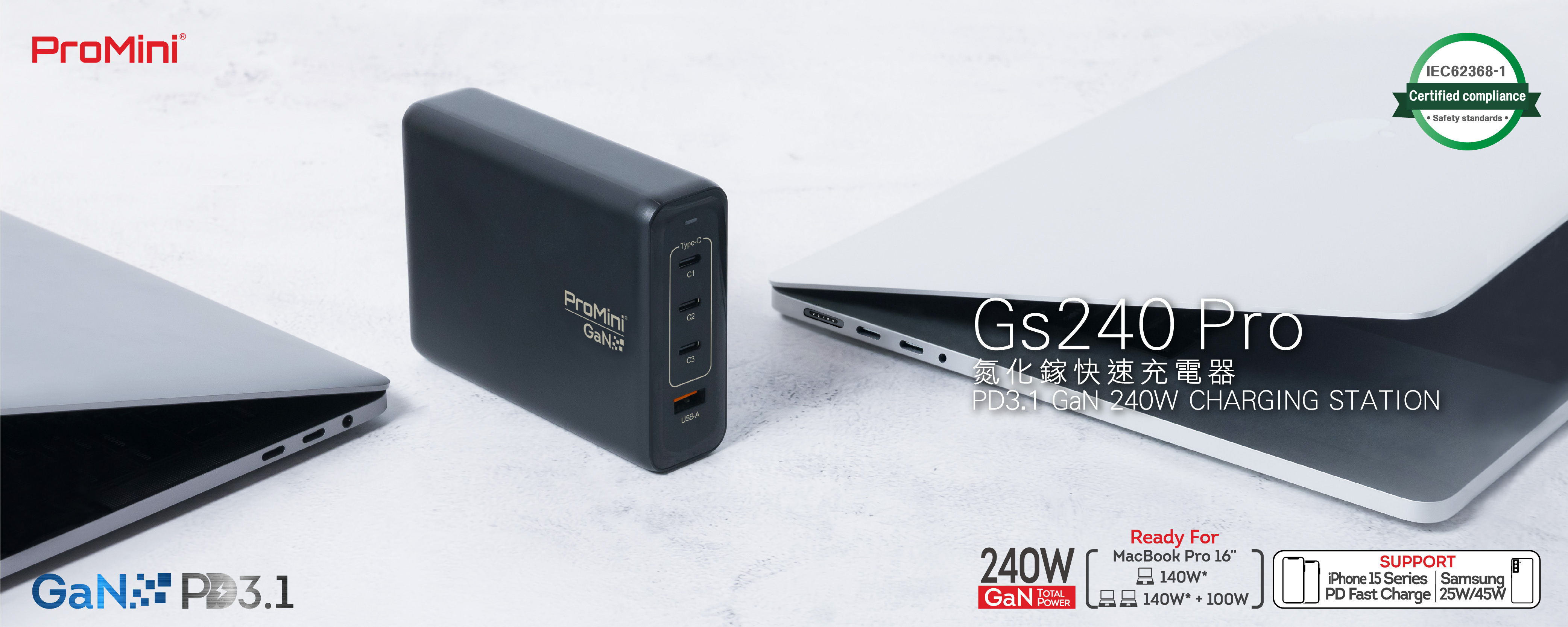

- PD3.1 GaN 240W Charging Station.
- Supports Power Delivery 3.1 (PD3.1) / PPS / QC5 / SCP / QC3.0 fast charge.

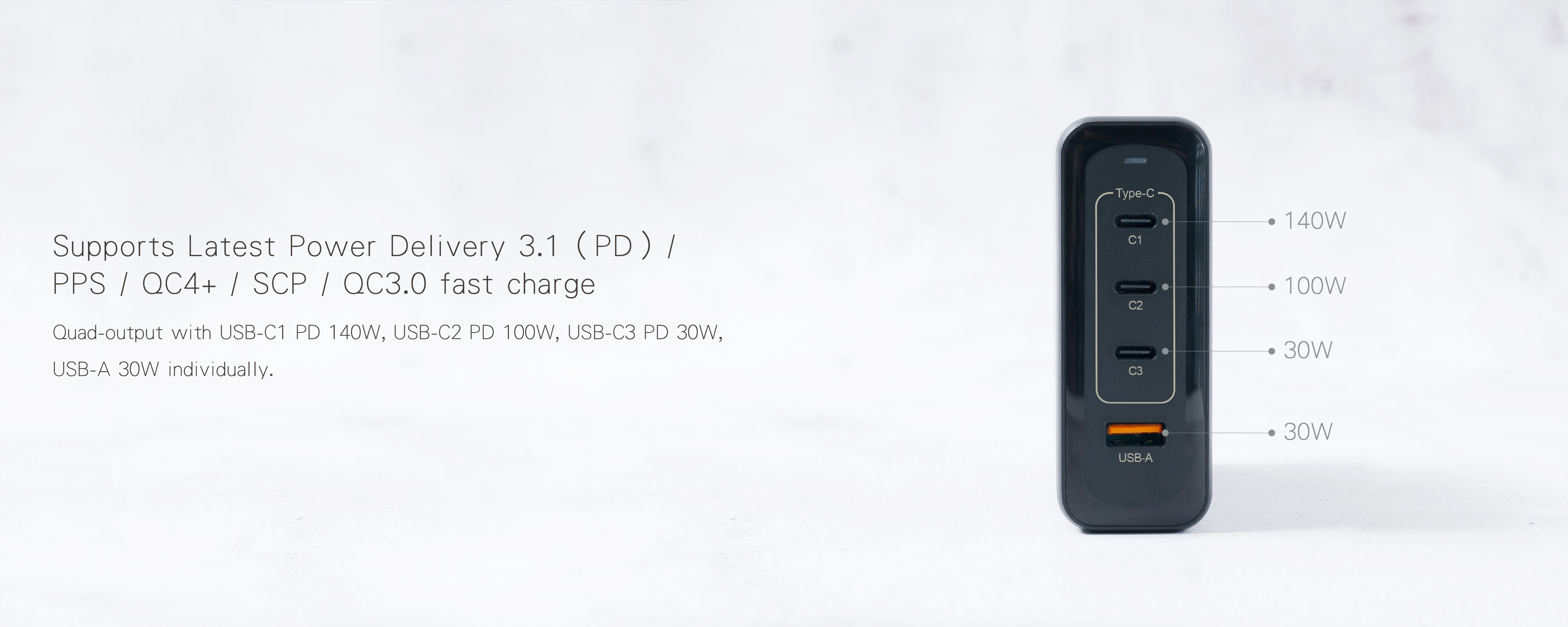

- Quad-output - USB-C1 140W, USB-C2 100W, USB-C3 30W, USB-A 30W individually.

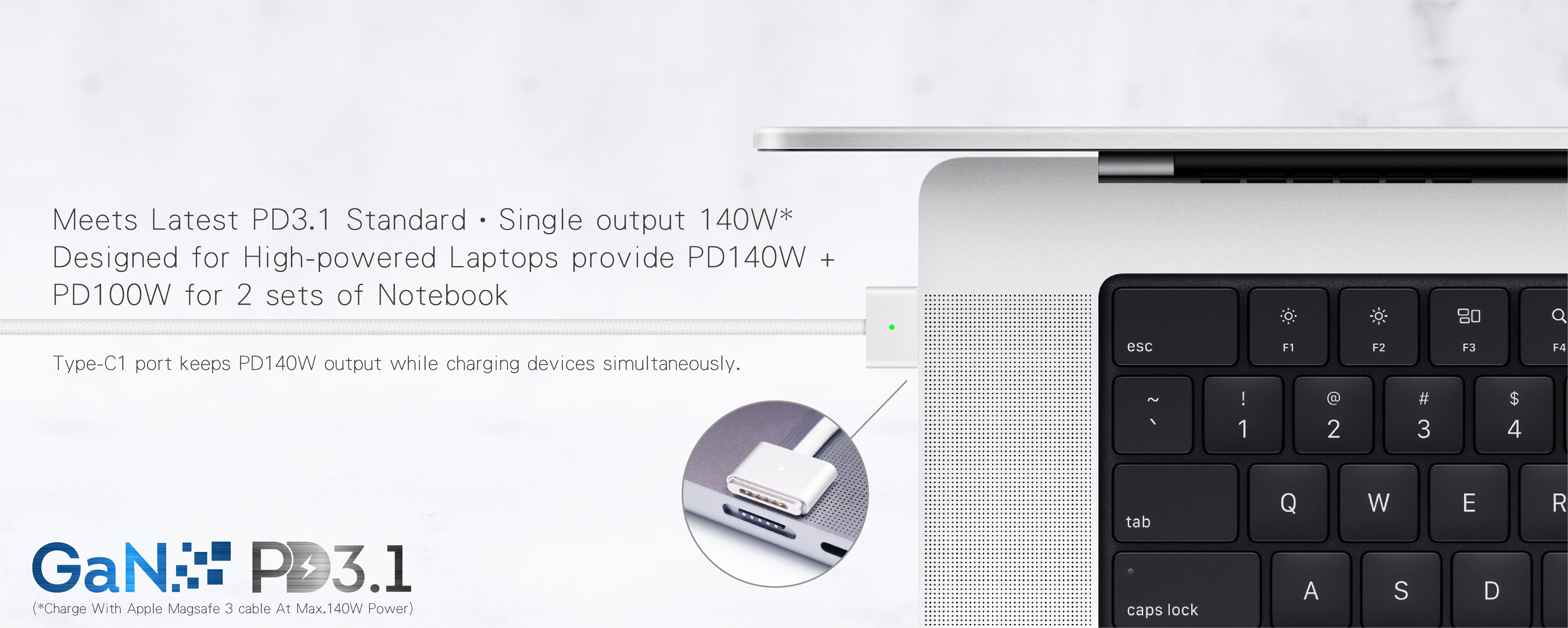

- Charge up MacBook Pro 16” with USB-C to MagSafe 3 cable, provides optimum PD140W fast charge.
- Charge up 2 sets of MacBook Pro/Notebook, provides both fast charge with PD140W+PD100W (Max,)
- Charges 4 devices simultaneously, USB-C1 port keeps PD140W output
- Total output up to 240W
- Compatible with the new USB-C PD devices such as the Macbook Pro 16"/15" and other devices powered by USB-C connector.
- Supports iPhone 15/Pro/Pro Max – PD fast charge, Samsung Super Fast Charge PPS 45W/25W, fast charging for Galaxy S22 Ultra, Huawei SCP 5A super charge & Nintendo Switch (TV-mode) etc.
- Fast Charge PPS 45W/25W, fast charging for Galaxy S22 Ultra, Huawei SCP 5A super charge & Nintendo Switch (TV-mode) etc.

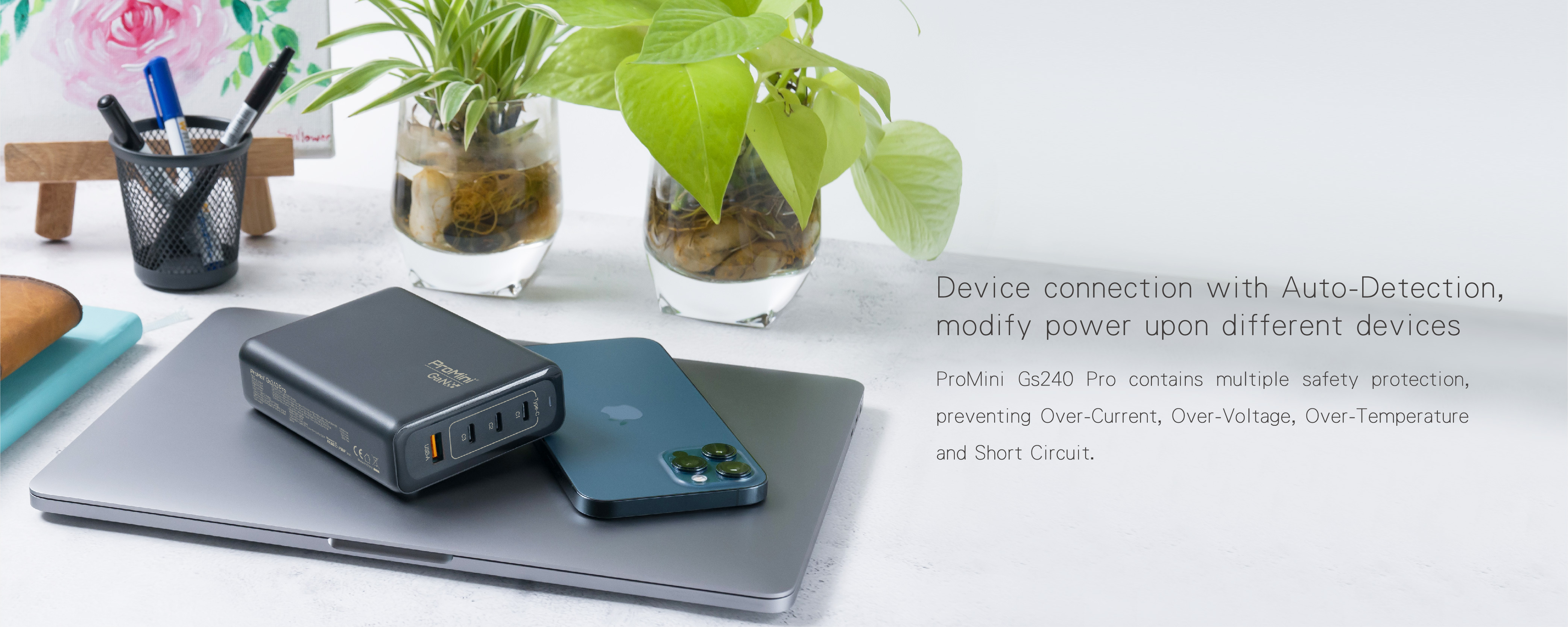

- Device connection Auto-Detect, power On/Off automatically.
- Multiple safety protection, prevent Over-Current, Over-Voltage, Over-Temperature and Short Circuit.
- Certified compliance with applicable safety standard.
- Covered by Global products liability insurance.
- UK plug power cord with BS1363 certificate, complies with Hong Kong safety standard.
- Certified compliance with IEC62368-1, complies with Hong Kong safety standard.
- Product is covered by Global products liability insurance within one-year warranty period.
Specification :
Input: AC200V-240V~ 50/60Hz 3A max.
Single Output
USB-C1: DC5V⎓3A 9V⎓3A 12V⎓3A 15V⎓3A 20V⎓5A 28V⎓5A 140W max.
PPS: DC3.3V-21V⎓5A
USB-C2: DC5V⎓3A 9V⎓3A 12V⎓3A 15V⎓3A 20V⎓5A 100W max.
PPS: DC3.3V-21V⎓5A
USB-C3: DC5V⎓3A 9V⎓3A 12V⎓2.5A 15V⎓2A 20V⎓1.5A 30W max.
PPS: DC3.3V-11V⎓3A
USB-A: DC4.5V⎓5A 5V⎓4.5A 5V⎓3A 9V⎓3A 12V⎓2.5A 15V⎓2A 20V⎓1.5A 30W max.

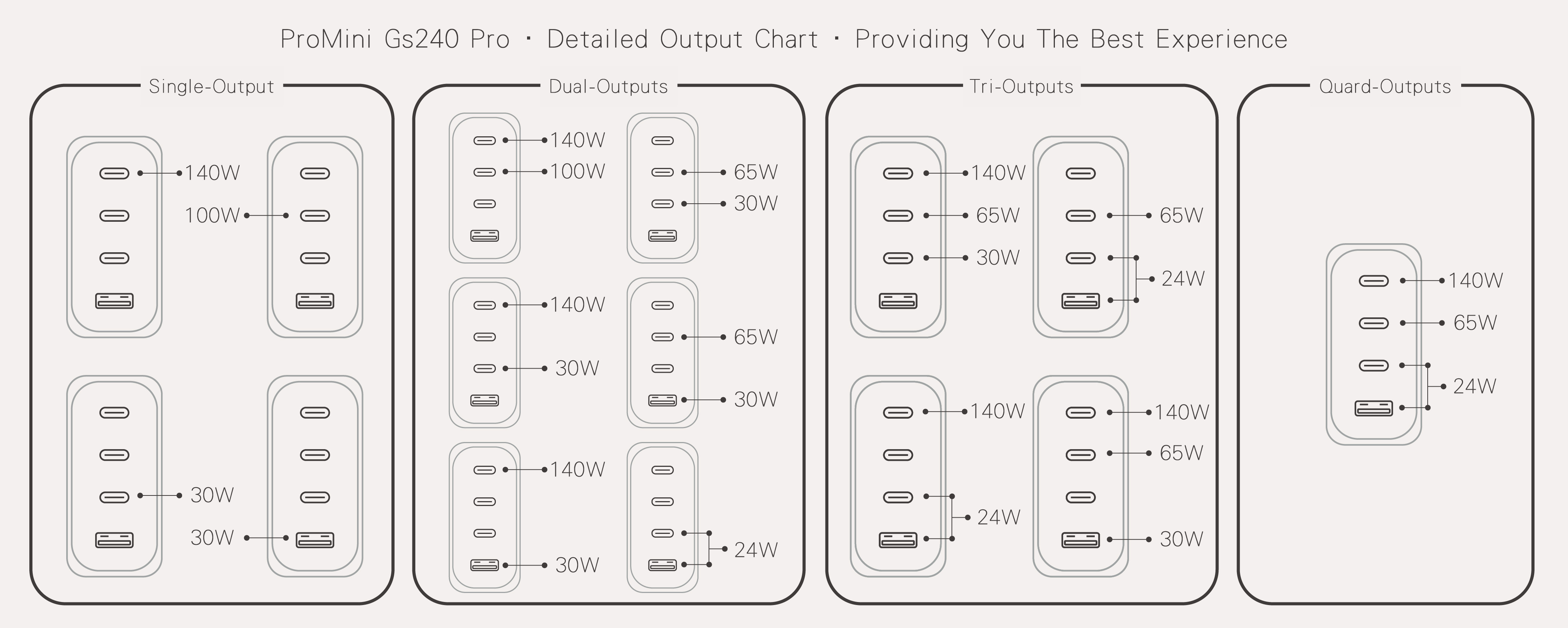

Dual Output
USB-C1+USB-C2: 140W+100W 240W max.
USB-C1+USB-C3: 140W+30W 170W max.
USB-C1+USB-A: 140W+30W 170W max.
USB-C2+USB-C3: 65W+30W 95W max.
USB-C2+USB-A: 65W+30W 95W max.
USB-C3+USB-A: DC5V⎓2.4A+5V⎓2.4A 24W max.
Tri-Output
USB-C1+USB-C2+USB-C3: 140W+65W+30W 235W max.
USB-C1+USB-C2+USB-A: 140W+65W+30W 235W max.
USB-C1+(USB-C3+USB-A): 140W+(24W-5V⎓2.4A+5V⎓2.4A) 164W max.
USB-C2+(USB-C3+USB-A): 65W+(24W-5V⎓2.4A+5V⎓2.4A) 89W max.
Quad-Output
USB-C1+USB-C2+(USB-C3+USB-A): 140W+65W+(24W-5V⎓2.4A+5V⎓2.4A) 229W max.
Total Output: 240W
Dimension 113.5 x 86 x 32.5mm
Weight 505g
Package contains
- ProMini Gs240
- AC power cord ( 1.5m )
- User’s Manual
Full Packing
Weight : 775g
Dimension: 140 x 125 x 70 mm
