Product Feature:

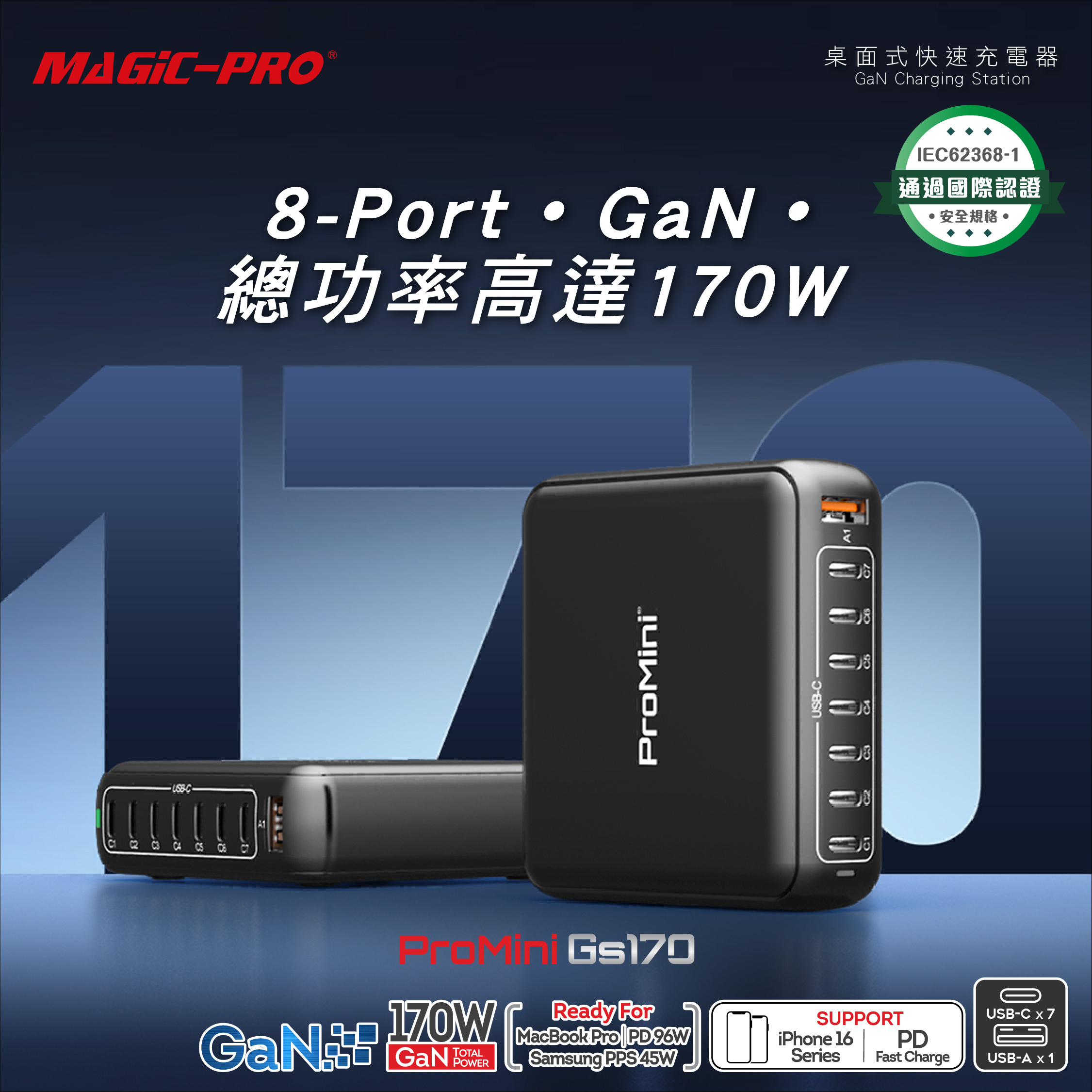

- Octa-8 ports PD3.0 GaN 170W Charging Station.

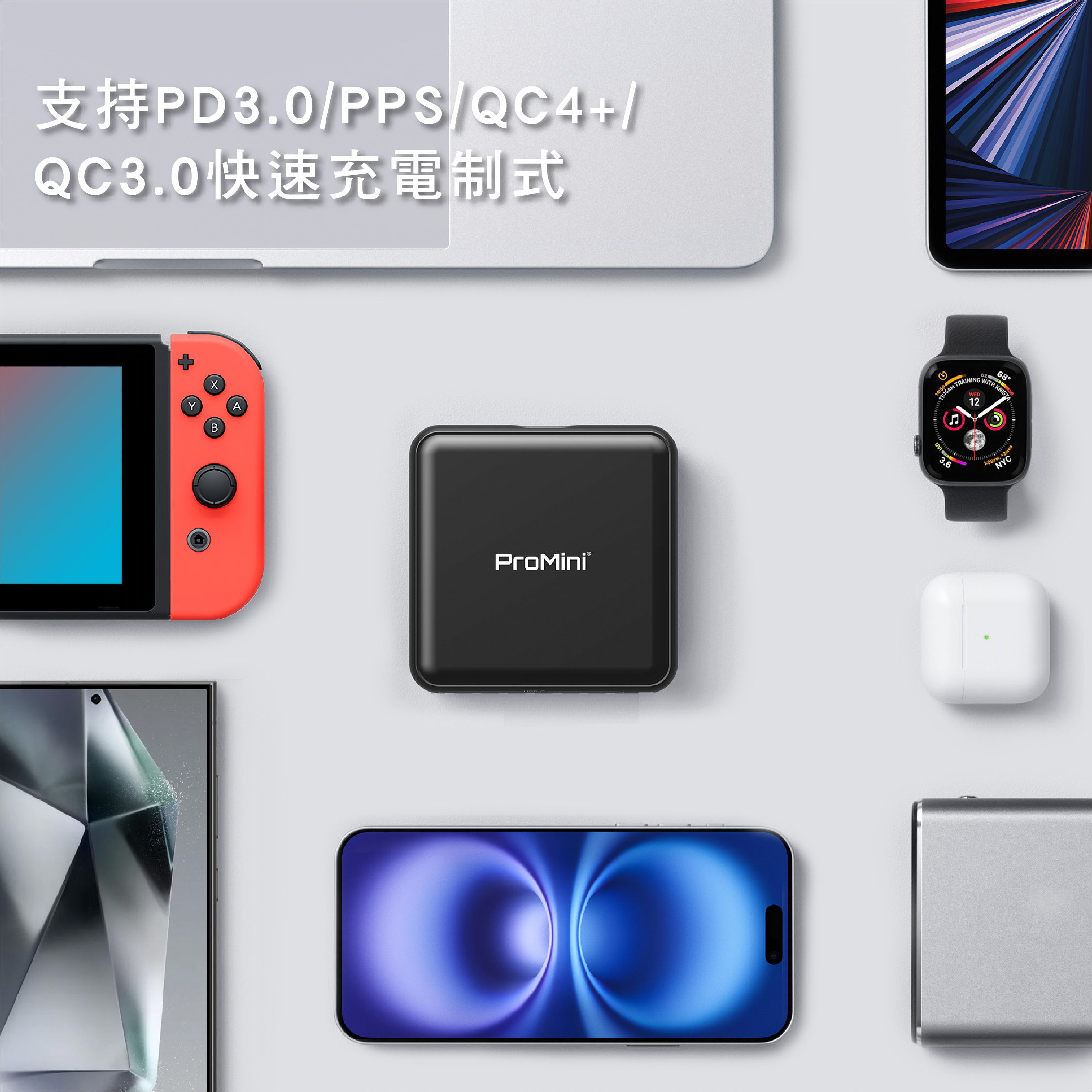

- Supports Power Delivery 3.0 / PPS / SCP / QC3.0 fast charge.

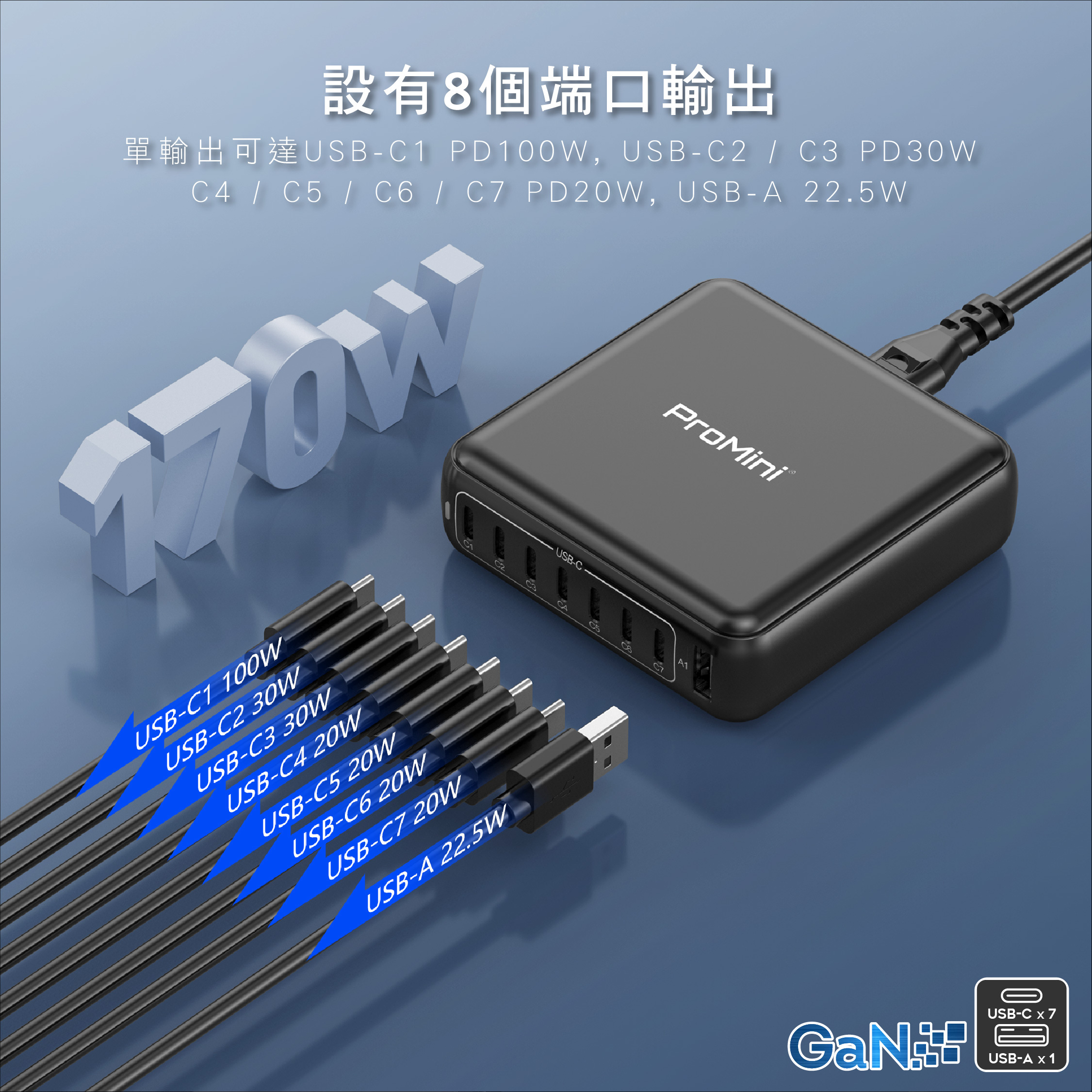

- Octa-8 output- USB-C1-PD100W; C2,C3-PD30W; C4,C5,C6,C7-PD20W; USB-A1-22.5W
individually.

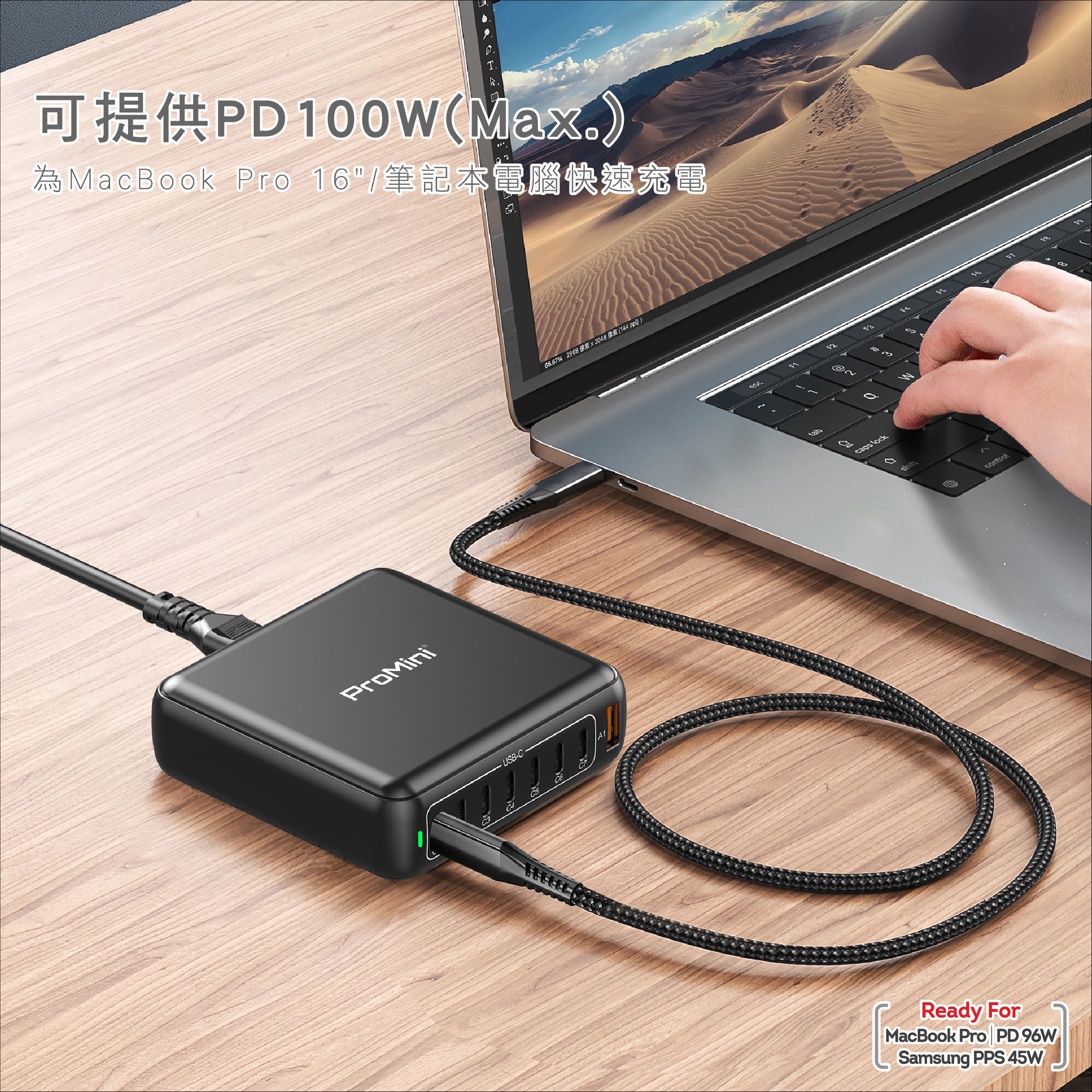

- Charge up a MacBook Pro 16” / Notebook, provides PD100W (Max.) fast charge.

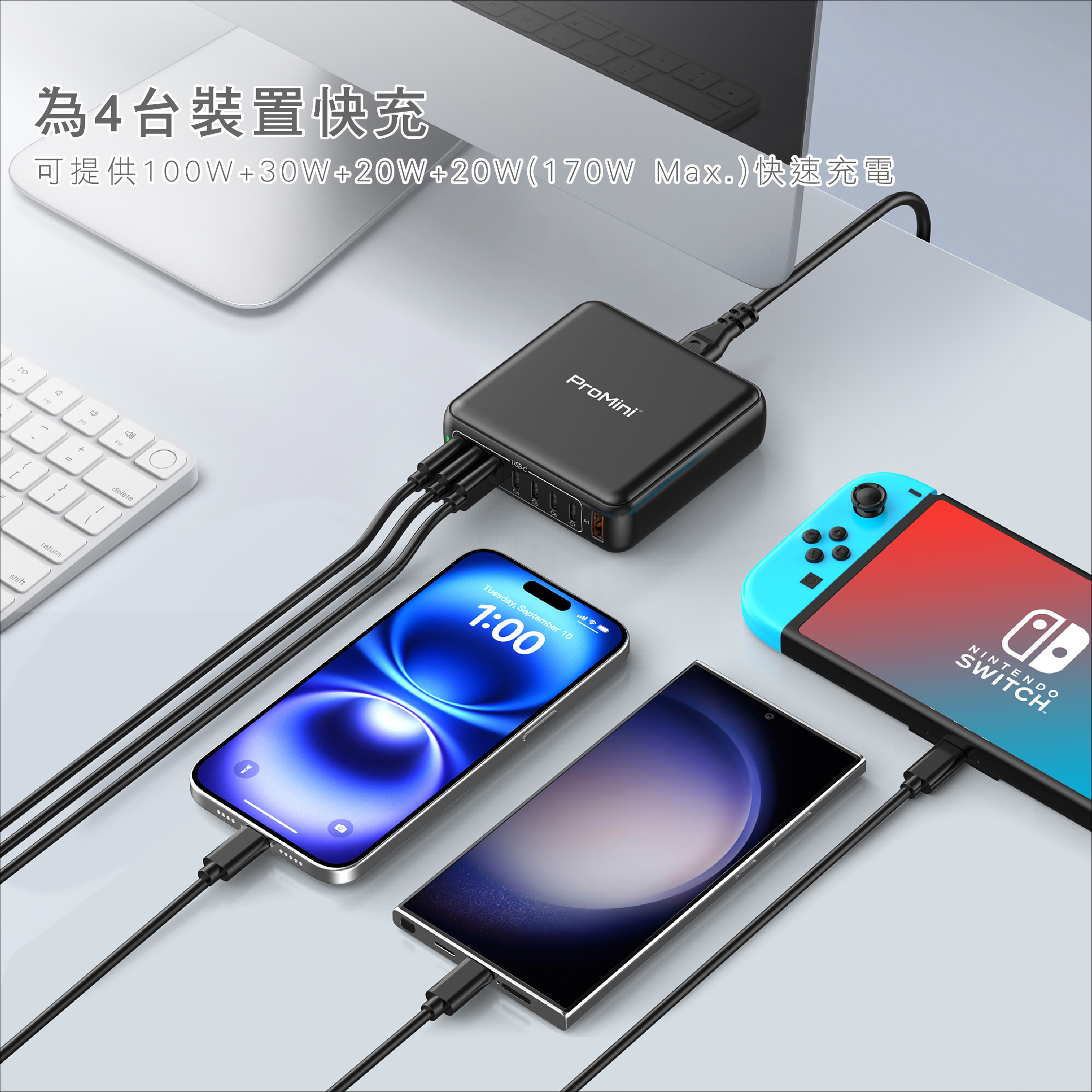

- Charge up 4 devices, provides PD fast charge with 100W+30W+20W+20W (170W Max.)

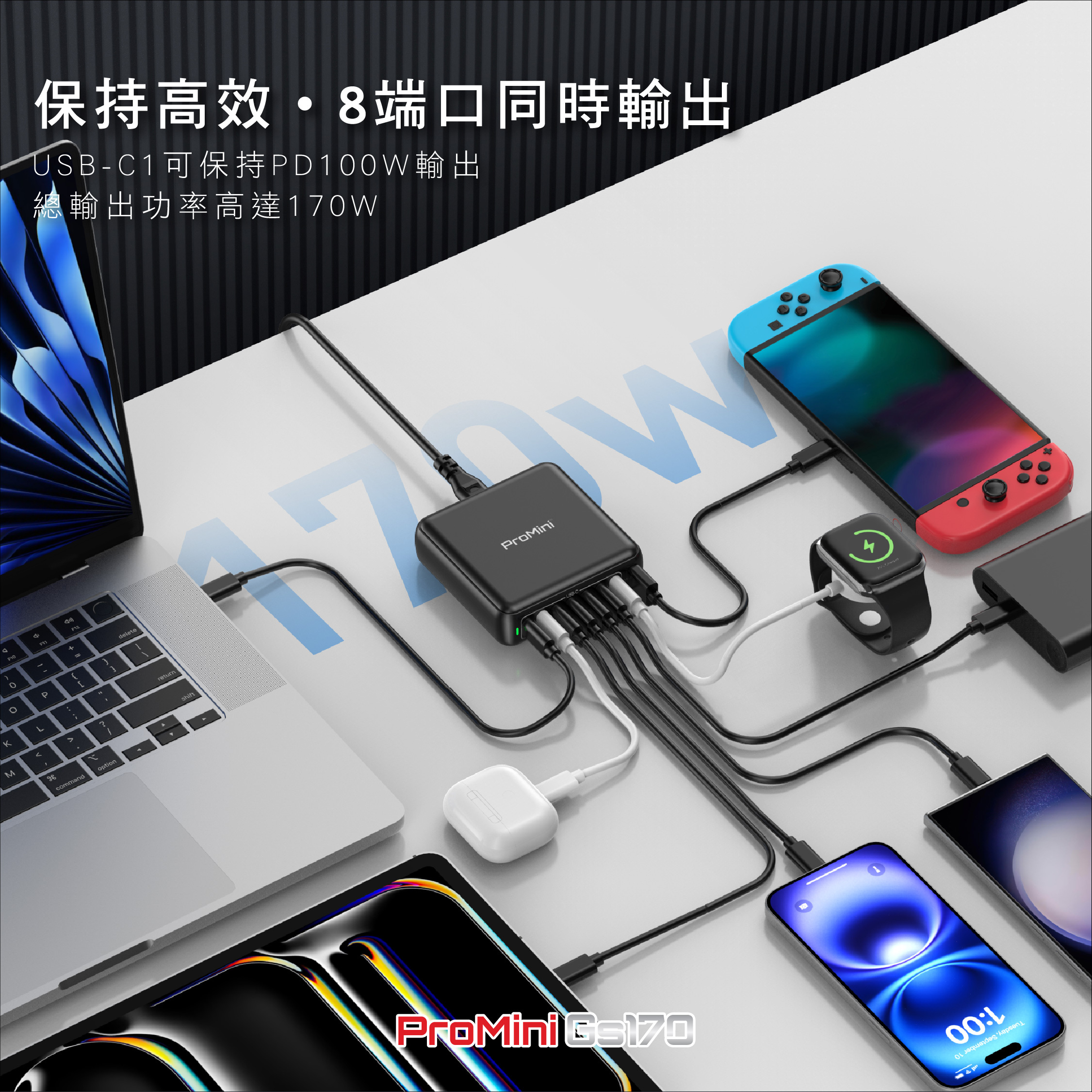

- Charges 8 devices simultaneously, USB-C1 port keeps PD100W output
- Total output up to 170W
- Compatible with the new USB-C PD devices such as the Macbook Pro 16"/15" and other devices
powered by USB-C connector.

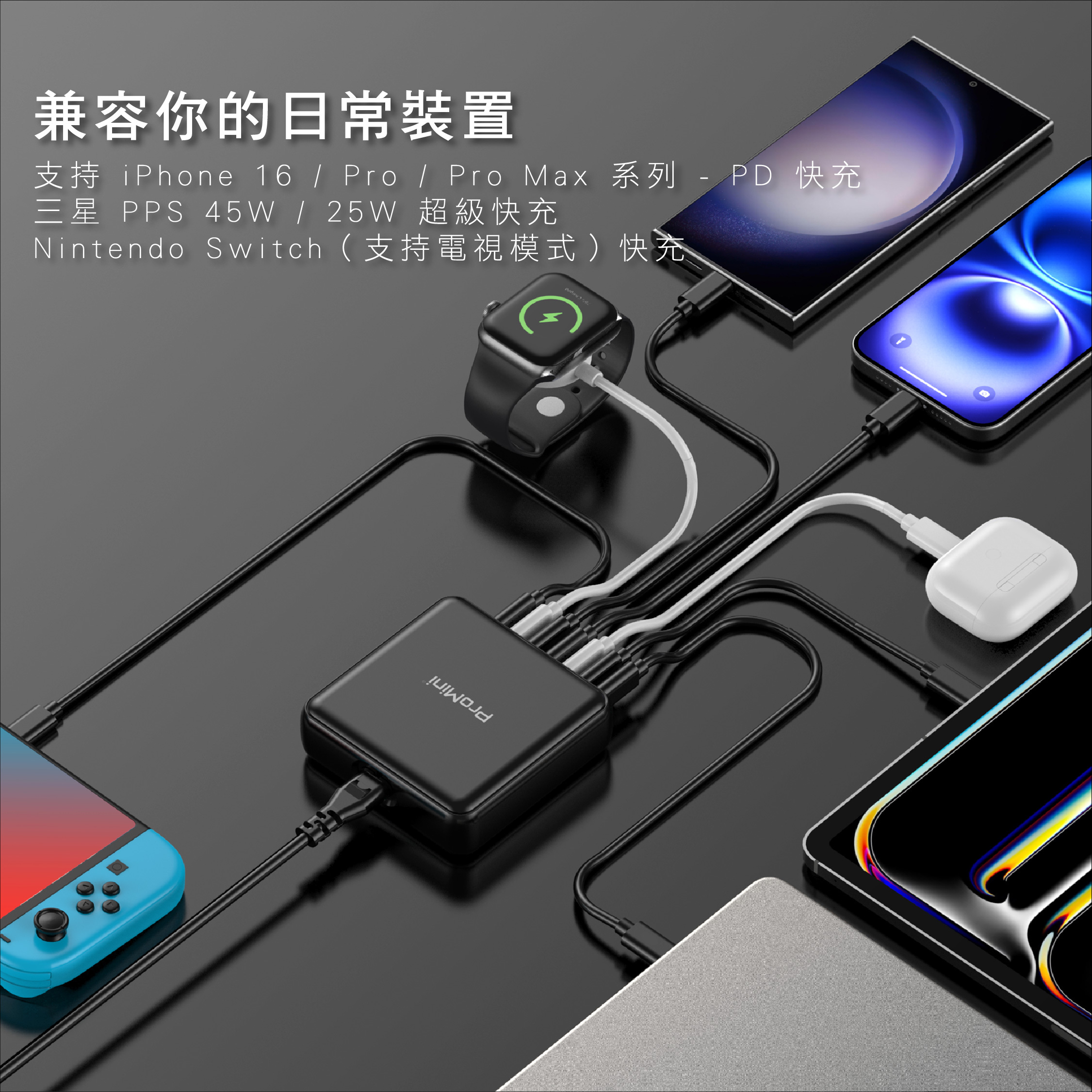

- Supports iPhone 16/Pro/Pro Max series – PD fast charge, Samsung Super Fast Charge PPS 45W /
25W, Huawei SCP 5A super charge & Nintendo Switch (TV-mode) etc.
- Device connection Auto-Detect, power On/Off automatically.
- Multiple safety protection, prevent Over-Current, Over-Voltage, Over-Temperature and Short Circuit.
- UK plug power cord with BS1363 certificate, compliance with Hong Kong safety standard.
- Certified compliance with IEC62368-1, complies with international safety standards.
- Product is covered by Global products liability insurance within one-year warranty period.
Specification :
Input: AC100V-240V~ 50/60Hz 4.5A max.
Single Output
USB-C1: DC5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A 100W max.
PPS: DC3.3V-21V⎓5A
USB-C2: DC5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A 30W max.
USB-C3: DC5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A 30W max.
USB-C4: DC5V⎓3A, 9V⎓2.22A, 12V⎓1.67A 20W max.
USB-C5: DC5V⎓3A, 9V⎓2.22A, 12V⎓1.67A 20W max.
USB-C6: DC5V⎓3A, 9V⎓2.22A, 12V⎓1.67A 20W max.
USB-C7: DC5V⎓3A, 9V⎓2.22A, 12V⎓1.67A 20W max.
USB-A1: DC5V⎓3A, 9V⎓2A, 10V⎓2.25A, 12V⎓1.5A 22.5W max.

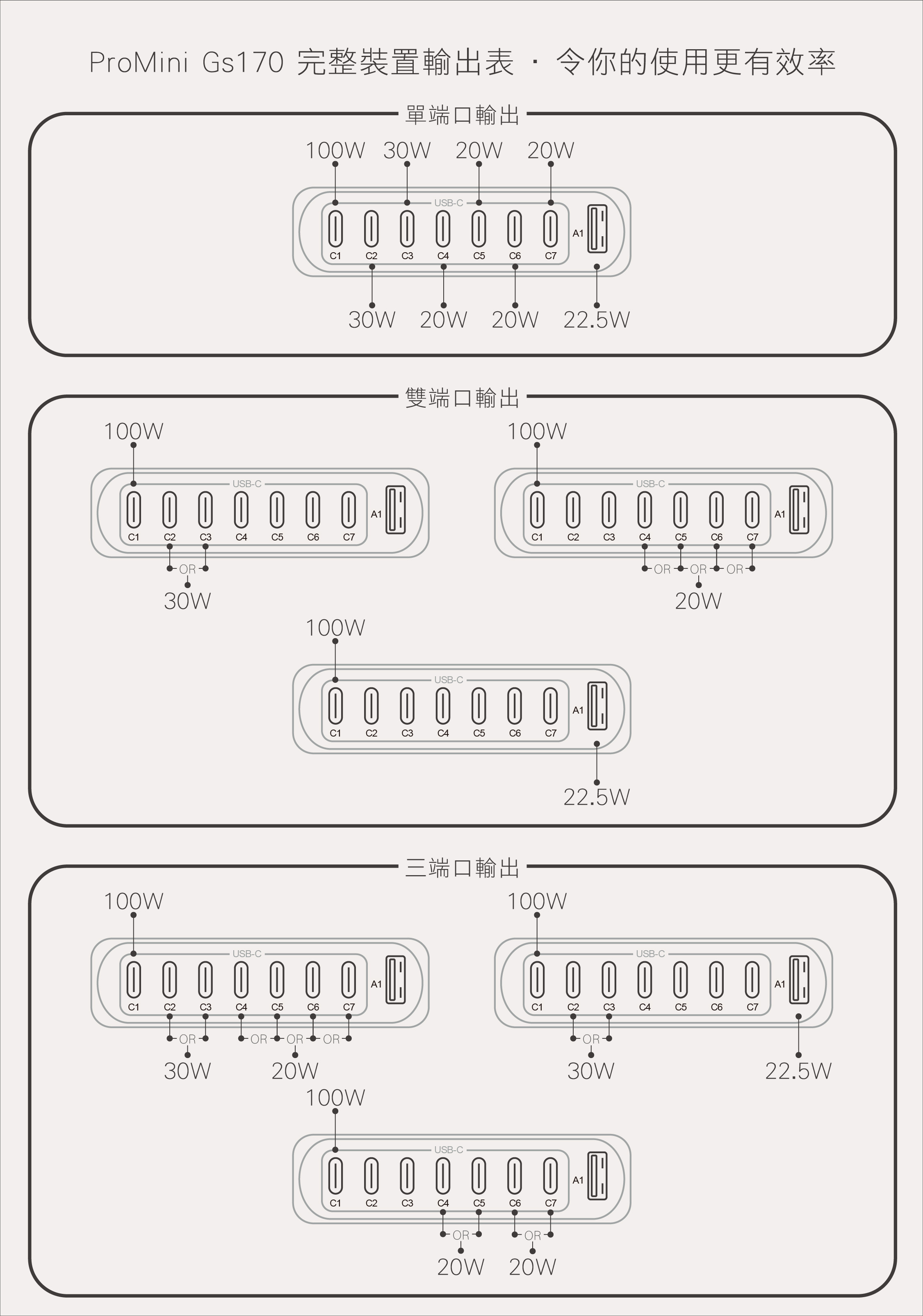

Dual-Output
C1+C2/C3 100W+30W 130W max.
C1+C4/C5/C6/C7 100W+20W 120W max.
C1+A1 100W+22.5W 122.5W max.
3-Output
C1+C2/C3+C4/C5/C6/C7 100W+30W+20W 150W max.
C1+C2/C3+A1 100W+30W+22.5W 152.5W max.
C1+C4/C5+C6/C7 100W+20W+20W 140W max.

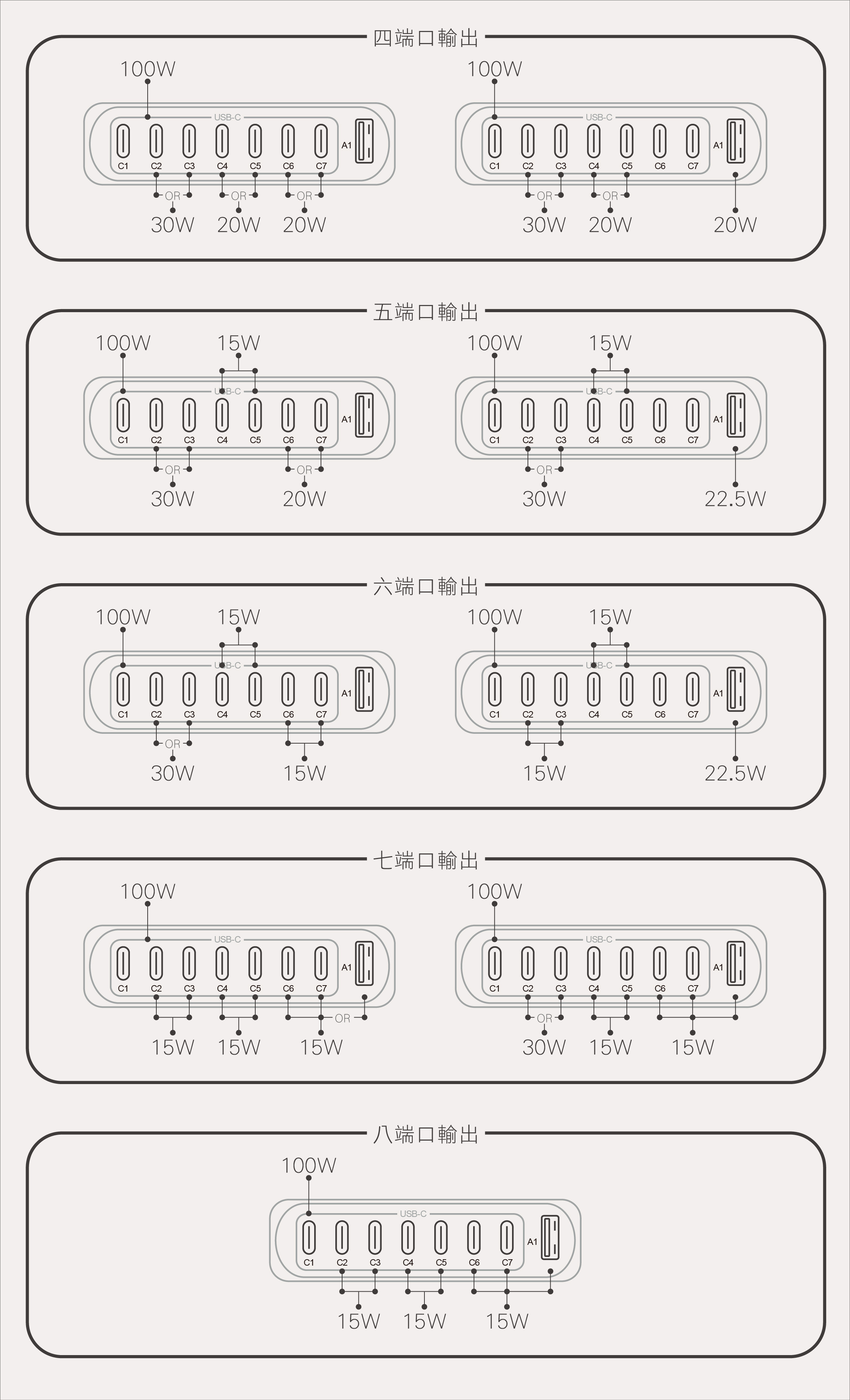

4-Output
C1+C2/C3+C4/C5+C6/C7 100W+30W+20W+20W 170W max.
C1+C2/C3+C4/C5+A1 100W+30W+20W+20W 170W max.
5-Output
C1+C2/C3+(C4+C5)+C6/C7 100W+30W+(15W)+20W 165W max.
C1+C2/C3+(C4+C5)+A1 100W+30W+(15W)+22.5W 167.5W max.
6-Output
C1+C2/C3+(C4+C5)+(C6+C7) 100W+30W+(15W)+(15W) 160W max.
C1+(C2+C3)+(C4+C5)+A1 100W+(15W)+(15W)+22.5W 152.5W max.
7-Output
C1+(C2+C3)+(C4+C5)+(C6+C7/A1) 100W+(15W)+(15W)+(15W) 145W max.
C1+C2/C3+(C4+C5)+(C6+C7+A1) 100W+30W+(15W)+(15W) 160W max.
8-Output
C1+(C2+C3)+(C4+C5)+(C6+C7+A1) 100W+(15W)+(15W)+(15W) 145W max.
Total Output: 170W

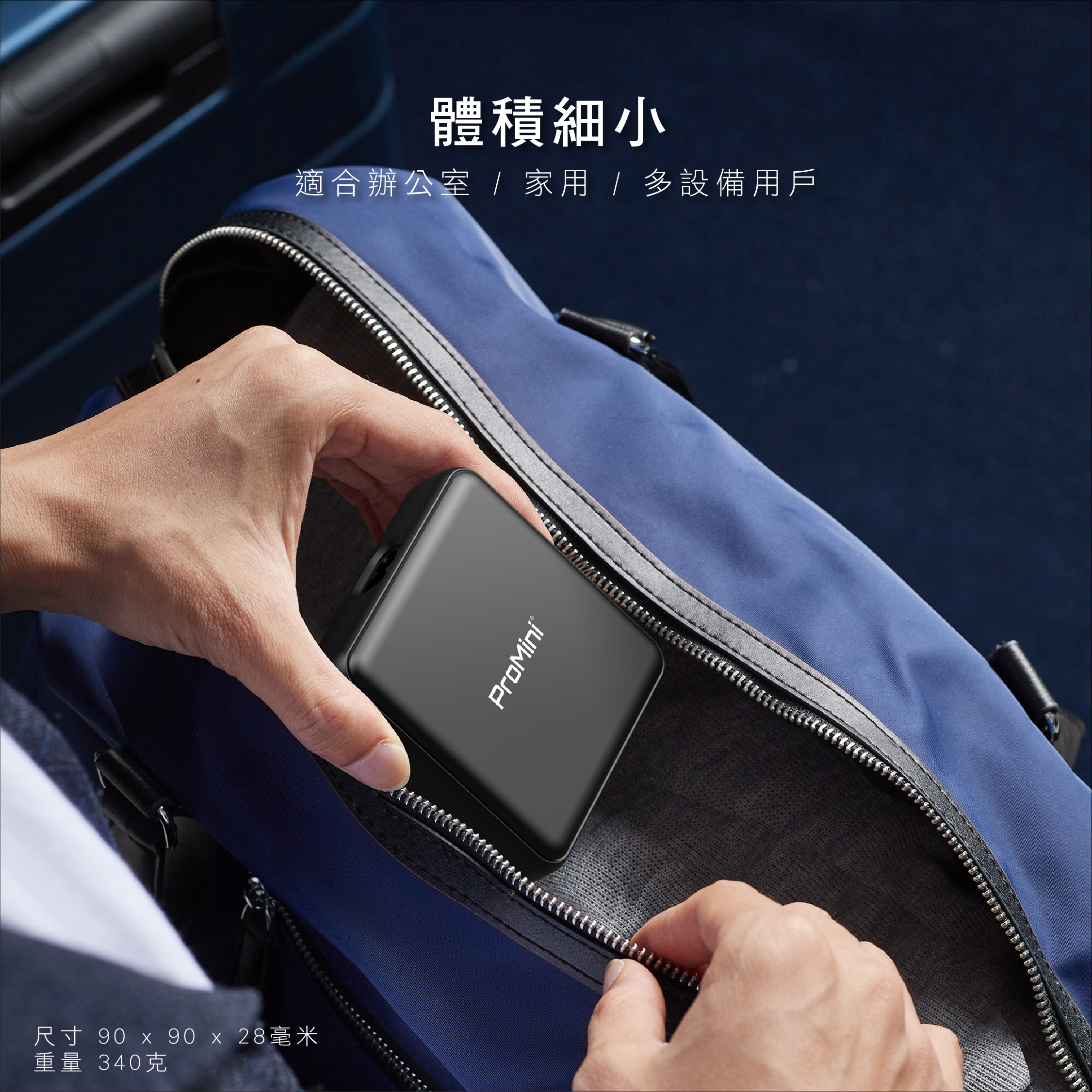

Dimension 90 x 90 x 28mm
Weight 340g
Package contains
- ProMini Gs170
- AC power cord ( 1.5m )
- User’s Manual
